Hydraulic piston seals SPGO

Material:Filled PTFE+ NBR   Working condition:Max speed:5m/s   Max pressure:40 Mpa    Temperature range:-30~200℃

SPGO is a standard compact seal for wide application.Same properties with SPG.

Hydraulic piston seals SPGW

Material:ptfe+teflon+pu+nbr   Working condition: Max speed:1.5m/s   Max pressure:50 Mpa    Temperature range:-30~100℃

SPGW is for reciprocated hydraulic systems.Possessing excellent performance if applied at heavy load and double sealing under high pressure working conditions.Particularly suitable for long stroke,large range of fluids and high temperature circumstance.Applicable for bigger piston gap.Simple groove structure.

Hydraulic piston seals SPGA

Material:Filled PTFE+ NBR   Working condition:Max speed:5m/s   Max pressure:40 Mpa  Temperature range:-30~100℃

SPGA is a double acting seal capable of passing over port.

The Nylon sealing face has a step-cut joint for ease of installation.It composed a rubber energizer.

Hydraulic piston seals OK for Volvo

Material:Nylon+ NBR   Working condition: Max speed:5m/s   Max pressure:40 Mpa   Temperature range:-30~100℃

SPGA is a double acting seal capable of passing over port.

The Nylon sealing face has a step-cut joint for ease of installation.It composed a rubber energizer.

Hydraulic piston seals SPG

Material:Filled PTFE+ NBR  Working condition: Max speed:3m/s   Max pressure:40 Mpa    Temperature range:-30~100℃

SPG is standard compact seal for widely application,working in the piston.

 Hydraulic piston seals DAS

Material:NBR/FKM+PU+POM/NY    Working condition:  Max speed:0.5 m/s  Max pressure:35 Mpa    Temperature range:-30~100℃

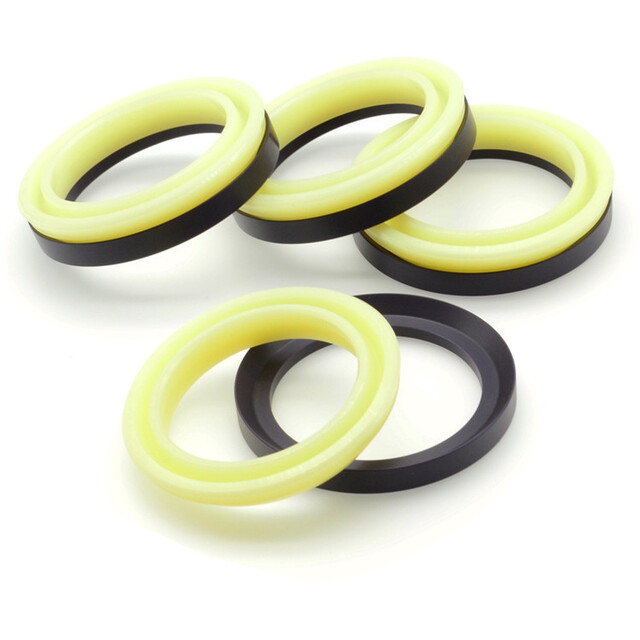

Hydraulic piston seals OUY

Material:NBR/NYLON+PU/NBR+POM    Working condition:Max speed:0.5 m/s Max pressure:20 Mpa    Temperature range:-45~100℃

Hydraulic rod seals IDI/PTB MPI/MPS

Material:PU+NBR   Working condition:Max speed:0.5 m/s   Max pressure:40 Mpa   Temperature range:-35~110℃

Hydraulic rod seals IDI/PTB MPI/MPS

HBY combined with rod seals,to absorb impact and srge pressure under heavy load in order to separate high temperature fluids and improve the service life of the seal element.

Material:PU+NY   Working condition:Max speed:0.5 m/s Max pressure:21 Mpa   Temperature range:-45~110℃

Hydraulic rod seals SPN

Description:SPN has same properties with HBTS. Applied to high pressure and high sliding speed conditions.

Material:NBR+Filled PTFE   Working condition:   Max speed:3 m/s   Max pressure:35 Mpa    Temperature range:-45~110℃

Hydraulic rod seals HBTS

HBTS is for reciprocated hydraulic system,prossessing excellent performance in high,medium and low pressure and in high load,high frequency conditions,especially suitable for long stroke,applied to bigger rod diameter in fluids and under high pressure.

Material: NBR+Filled PTFE  Working condition:Max speed:3 m/s  Max pressure:35 Mpa  Temperature range:-30~110℃

Hydraulic rotary seals GRS

 Material:Elastomer+Filled PTFE Working condition:Max speed:3 m/s  Max pressure:35 Mpa  Temperature range:-30~200℃

Hydraulic rotary seals ROI

 ROI has same properties with SPN. Applied to high pressure and high sliding speed conditions.

Material:PU Working condition: Max speed:0.3 m/s Max pressure:28Mpa Temperature range:-30~100℃

Hydraulic Wiper seals DKB

 DKB is for reciprocated,swing or rotating sealing system.excellent scraping effect,wear resistant,long service life

Material:NBR+iron Working condition: Max speed:0.5 m/s

Hydraulic Wiper seals DKBI

Description: DKBI is for reciprocated,swing or rotating sealing system.excellent scraping effect,wear resistant,long service life

Material:PU+iron Working condition: Max speed:0.5 m/s

Hydraulic Wiper seals GSZ

GSZ is for reciprocating system,especially in low friction,high frequency and heavy load condition.

Material:Filled PTFE+Elastomer  Working condition:  Max speed:3 m/s

Hydraulic Bearing guidance seals wearing ring

WR is nometallic guiding and positioning element,excellent compression resistant and wear resisitance,high load performance and still flexible before it reaches its brittleness temperature.also easy in installation.

Working condition: Max speed:1 m/s Temperature range:-45~120℃    Material :Phenolic resin

Hydraulic Bearing guidance seals RYT

Bearing rings of piston,prevent the piston from scratching,improve durability of seals.PTFE can eliminate crawling.It can be cut according to the cylinder Diameter.

Working condition:Max speed:5 m/s  Temperature range:-45~200℃     Material :PTFE

Hydraulic Bearing guidance seals KZT

KZT is combined with piston seal ring and anti-wear ring,this product with the anti-wear and piston ring seals used in combination to prevent the cylinder oil from mixed with foreign particles and cause damage to the seals and to ensure that the seasl have a   long service life.the piston rod seals,used in combine with the metal bushing,prevent damage to the rods as a result of PTFE’s impurity submerge function.

Working condition: Max speed:5 m/s  Material :PTFE+Bronze

Hydraulic Bearing gasket N4W

Working condition:Material :Nylon/POM  Hydraulic Bearing gasket BRT

Working condition: Material :PTFE+bronze

Excavator seals kit

KOMATSU,CATERPILLAR,HITACHI,SUMITOMO,KOBELCO,DOOSAN,KATO,HYDUNDAI,DAEWOO,VOLVO,SANY,LIUGONG,YUCHAI.Et
